Technical Specifications — 170M5410 High Speed Square Body Fuse
| Parameter | Specification |
|---|---|
| Part Number | 170M5410 |
| Part Type | High Speed square Body Fuse |
| Brand Compatibility | Eaton Replacement (170M5410 Equivalent) |
| Amperage Rating | 500 A |
| Rated Voltage | 690V AC (IEC) / 700V (UL) |
| Breaking Capacity | 200 kA / 200 kAIC |
| Utilization Category | aR (Accompanied Semiconductor Protection) |
| Fuse Size / Construction Size | Size 2 |
| Fuse Shape | Square body, flush end contacts |
| Fuse Indicator | Top fuse status indicator (Visual) |
| Mounting Method | Flush — M10 mounting dimension |
| Center-to-Center Distance | 50.4 mm |
| Product Dimensions (L x H x W) | 168 mm x 80 mm x 124 mm |
| Product Weight | 308.5 g |
| Watt Losses | 75 W |
| Clearing (I²T) at 660V | 145,000 A²s |
| Pre-Arc (I²T) | 21,500 A²s |
| Certifications | CE Marked, UL Recognized, RoHS Compliant, IEC Rated |
| Fuse System Standard | IEC 60269-4 Flush End Connections Type A |
| Application | Semiconductor, DC Common Bus, DC Drives, Power Converters/Rectifiers |
| MOQ | 10 pcs |
| Packaging Type | Standard industrial packaging |
| OEM / Custom Options | Available — Custom labeling & packaging upon request |
Features — Engineered for Precision Protection

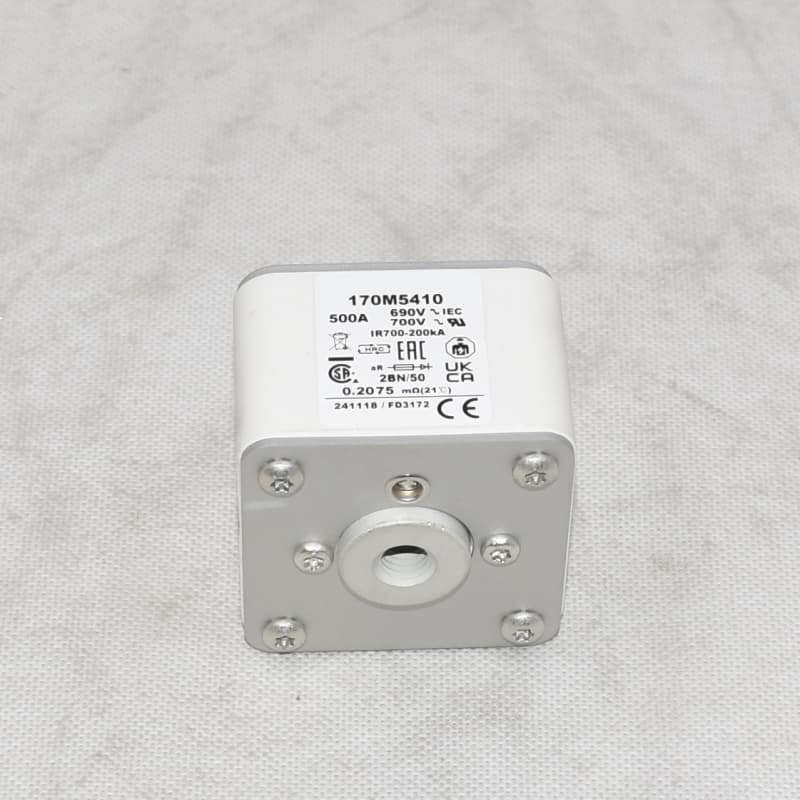

The 170M5410 High Speed square Body Fuse is a top-tier Eaton High Speed square Body Fuse replacement designed to safeguard sensitive semiconductor equipment. As a leading China High Speed Fuse supplier, CHINA EVERLASTING PARTS delivers this 690V High Speed Square Body Fuse with meticulous attention to IEC 60269-4 standards. Key features include a robust square body with flush end contacts, a top-mounted fuse status indicator for at-a-glance diagnostics, and a class aR utilization category tailored for accompanied semiconductor protection. The 500A amperage rating combined with a 200 kA breaking capacity ensures rapid fault interruption, while the compact size 2 construction (168mm x 80mm x 124mm) fits standard mounting dimensions with M10 flush mounting. This High Speed square Body Fuse is CE marked, UL recognized, and fully RoHS compliant — making it a reliable choice for global industrial applications.
Advantages — Why Choose Our High Speed Square Body Fuse
Benefits — Tangible Value for Your Business
When you source this China High Speed Fuse from CHINA EVERLASTING PARTS, you gain more than just a component — you secure operational continuity. The 690V High Speed Square Body Fuse minimizes unplanned downtime by protecting expensive semiconductor assets in DC common bus systems, DC drives, and power converters/rectifiers. For retailers, wholesalers, and aftermarket service providers, our Custom High Speed Fuse and OEM High Speed Fuse programs offer brand-labeling flexibility and competitive margins. Reduced watt losses translate to lower cooling costs, while the 200 kA breaking capacity provides peace of mind in high-energy circuits. With a streamlined supply chain from our China facility, you benefit from shorter lead times, consistent quality, and significant cost savings compared to OEM-branded alternatives — all without compromising on performance or safety certifications.
Evidence — Trusted by Industry Professionals Worldwide
Our High Speed square Body Fuse series is backed by rigorous testing and globally recognized certifications. The 170M5410 complies with IEC 60269-4 (flush end connections type A), carries CE marking for European markets, is UL Recognized for North American applications, and meets RoHS environmental standards. Below are verified testimonials from B2B clients who rely on our Eaton High Speed square Body Fuse replacements daily.
"We've been sourcing Eaton High Speed square Body Fuse replacements from China Everlasting Parts for over two years. The 170M5410 equivalent performs identically to the original Eaton unit — same clearing characteristics, same build quality. Our end customers in the semiconductor equipment sector appreciate the cost savings without any reliability concerns. The CE and UL certs make EU imports seamless. Highly recommended for any High Speed square Body Fuse requirement."
"As a fuse shop serving local manufacturers, I need 690V High Speed Square Body Fuse options that I can trust. The 170M5410 from China Everlasting Parts has become my go-to for customers upgrading their DC drive systems. The top fuse status indicator is a huge selling point — maintenance teams love the quick visual check. MOQ of just 10 pieces lets me stock without overcommitting. The OEM High Speed Fuse labeling option also helped me build my own brand. Five stars, no question."
"We integrated the Custom High Speed Fuse version of the 170M5410 into our rectifier assemblies. The 200 kA breaking capacity and aR classification are exactly what our designs demand. China Everlasting Parts provided full documentation including IEC test reports, which satisfied our ISO audit requirements. The China High Speed Fuse supply chain is reliable — consistent lead times and excellent packaging. We've now standardized on their High Speed square Body Fuse across three product lines."
Typical Applications
Frequently Asked Questions
Q: Is this 170M5410 fuse a direct replacement for the Eaton original?
A: Yes. Our 170M5410 High Speed square Body Fuse is engineered as a drop-in Eaton High Speed square Body Fuse replacement. It matches the original's dimensions (168x80x124mm), 500A rating, 690V AC voltage, and aR classification. No system modifications or adapter kits are required.
Q: What certifications does this 690V High Speed Square Body Fuse carry?
A: The 170M5410 is CE marked for European compliance, UL Recognized for North American markets, RoHS compliant for environmental safety, and rated per IEC 60269-4 standards. Full documentation is available upon request.
Q: Can I order Custom High Speed Fuse versions with my own branding?
A: Absolutely. We offer OEM High Speed Fuse and Custom High Speed Fuse programs including private labeling, custom packaging, and tailored documentation. Contact our sales team with your specifications for a tailored quotation.
Q: What is the minimum order quantity (MOQ)?
A: The standard MOQ for the 170M5410 is 10 pieces. For larger bulk orders or long-term supply agreements, we offer tiered pricing discounts. Sample orders of 1-2 pieces may be accommodated for evaluation purposes — please inquire.
Q: How does the top fuse status indicator work?
A: The built-in visual indicator on the top of the fuse body provides a clear, at-a-glance status. When the fuse element has operated (blown), the indicator visibly changes state, allowing maintenance personnel to quickly identify and replace the affected unit without testing each fuse individually.
Q: What industries commonly use this China High Speed Fuse?
A: This High Speed square Body Fuse is widely deployed in industrial automation, renewable energy systems, UPS equipment, railway traction, steel mills, and any application utilizing DC drives, power converters, or rectifier stacks where semiconductor protection is critical.
Contact Us — Get a Quote Today
Ready to order the 170M5410 High Speed Square Body Fuse 690V or discuss your OEM High Speed Fuse requirements? Reach out to our dedicated sales team. We respond within 24 hours on business days.
