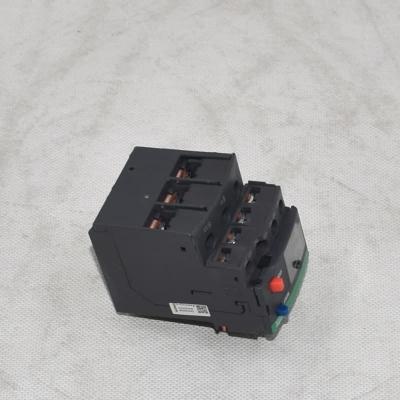

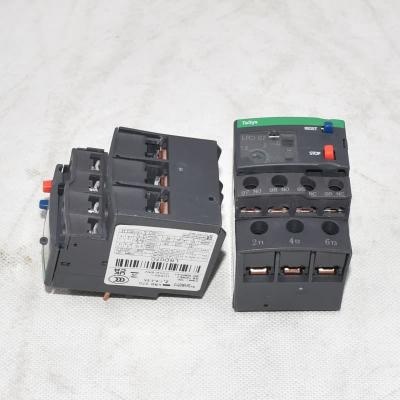

CHINA EVERLASTING PARTS CO., LIMITED - Your Professional Partner for High-Quality Industrial Filters & Electrical Components. We specialize in OEM/ODM manufacturing, delivering reliability and performance for B2B clients worldwide. PRECISION MOTOR PROTECTION LRD07 Thermal Overload Relay | Schneider Electric Compatible | 1.6–2.5A Engineered as a direct, reliable replacement for Schneider Electric LRD07 relays, this thermal overload relay offers robust motor protection for industrial applications. Ensure your motors are safeguarded against overloads, phase failures, and overheating with this class 10A, precision-adjustable component. Key Highlight: Direct fit for contactors LC1D09 to LC1D38. Features temperature compensation (-20°C to +60°C), manual reset, and 1 NO + 1 NC auxiliary contacts for comprehensive system integration and signaling. High-quality thermal overload protection relay for motor control circuits. Technical Specifications & Parameters Parameter Specification Part Number LRD07 Brand Compatibility Schneider Electric Replacement Relay Application Motor Protection Thermal Overload Class Class 10A (IEC 60947-4-1) Current Adjustment Range 1.6 – 2.5 A Auxiliary Contacts 1 NO + 1 NC Rated Insulation Voltage (Ui) 690 V IEC / 600 V UL/CSA Phase Failure Sensitivity Yes (Trips at 130% Ir on two phases) Operating Temperature -20°C to +60°C (with compensation) Degree of Protection IP20 (IEC 60529) Mounting Under Contactor (LC1D series), Plate, or Rail Dimensions (H x W x D) 66 x 45 x 70 mm MOQ 10 pcs Ideal for Your Motor Control Projects This Schneider Electric overload relay replacement is the optimal choice for B2B buyers, service centers, and wholesalers supplying the industrial automation, HVAC, and machinery sectors. Ensure your clients' systems have reliable overload protection. Ready to Order or Have Questions? Contact our sales team for pricing, volume discounts, and technical data sheets. We support OEM/ODM requests. Why Choose Our LRD07 Overload Protection Relay? Features (F) Precise Adjustment Range: Thermal protection adjustable from 1.6 to 2.5A, catering to specific motor FLCs. Robust Construction: Rated insulation voltage up to 690V IEC, with an impulse withstand of 6 kV. Comprehensive Protection: Class 10A trip characteristic (IEC 60947-4-1) with phase failure sensitivity. Versatile Compatibility: Designed to mount under Schneider Electric LC1D series contactors (LC1D09, LC1D12, LC1D18, etc.). Clear Signaling: Equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact. Advantages (A) These features translate into significant operational advantages for your business: Ensures motor longevity by preventing damage from overloads and phase loss. Minimizes unplanned downtime through reliable and fast tripping (Class 10A). Simplifies inventory and replacement with direct OEM compatibility, reducing sourcing time. Enhances system safety with wide temperature compensation and high dielectric strength. Benefits (B) For B2B buyers, wholesalers, and service providers, these advantages deliver tangible business benefits: Reduce Total Cost of Ownership: Protect expensive motors and machinery, lowering maintenance and replacement costs for your end-clients. Increase Customer Trust: Supply reliable, specification-matched components that perform consistently in the field. Streamline Operations: Easy integration and standard mounting save on installation labor and time. Expand Service Offerings: A critical spare part for servicing a wide range of industrial motor control panels. Evidence (E) Our commitment to quality is proven by industry standards and client satisfaction. This motor protection relay complies with IEC 60947-4-1, UL, and CSA standards, ensuring global acceptability. See what our professional partners say: Trusted by Industry Professionals "The LRD07 replacement performs identically to the OEM part. Perfect fit and reliable tripping. Our maintenance stock is now cost-effective." – TechSupply Industrial, USA ★★★★★ "As a wholesale distributor, consistent quality is key. These thermal overload relays have zero DOA and our clients report excellent field performance." – EuroElectro Components, Germany ★★★★★ "We use these in our motor repair service kits. The 1.6–2.5A adjustment is precise, and the build quality is solid. A trustworthy partner for parts." – PowerDrive Service Co., UK ★★★★★ Frequently Asked Questions & Contact FAQ Q: Is this LRD07 relay a direct replacement for Schneider Electric's original part?A: Yes. It is designed to be mechanically and electrically compatible with Schneider Electric LRD07 relays and LC1D series contactors. Q: What is the trip class, and why is it important?A: It is Class 10A. This indicates the trip time under overload conditions, crucial for protecting motors with specific starting characteristics. Q: Do you offer custom branding (ODM) for large volume orders?A: Yes. We welcome OEM/ODM inquiries. Please contact us with your specific requirements. Q: What is the lead time for an order of 100 pieces?A: Typically 15-20 days for production and shipping. Contact us for an exact quote. Contact Us for B2B Quotes CHINA EVERLASTING PARTS CO., LIMITEDProfessional High-Quality Components Manufacturer WhatsApp/WeChat: +86 18965520297Email: Sales@parts-machining.com Ideal for: Retailers, Service Centers, Wholesalers, Distributors.Request a catalog or discuss your project needs today.
